Choosing the right CNC process can be overwhelming with so many options. Using the wrong one wastes time, money, and can even compromise your part’s integrity.
Understanding when to use advanced CNC techniques like 5-axis machining, HSM, EDM, or Swiss-type turning is key. Each offers unique benefits for specific part geometries, materials, and production volumes, ensuring optimal results and cost-effectiveness.
I’ve spent years in CNC shops and helping clients like you, Alex, navigate the world of manufacturing. One thing I’ve learned is that not all CNC machining is created equal. The "standard" 3-axis milling or 2-axis turning is great for many things, but sometimes, the complexity of a part, the material, or the required precision demands a more advanced approach. Knowing which advanced technique to specify, or when to trust your manufacturing partner’s recommendation for one, can significantly impact your project’s success. It’s about getting the best quality, in the best time, for the best cost. Let’s explore some of these powerful processes.
When is 5-Axis CNC Machining the Smartest Choice for Complex Parts?
Struggling with intricate parts requiring multiple setups on a 3-axis machine? This increases time, cost, and the risk of errors. 5-axis machining offers a more efficient and accurate solution.
5-axis CNC machining is ideal for parts with complex geometries, organic shapes, and undercut features. It allows the cutting tool to approach the workpiece from five different directions simultaneously, reducing setups, improving accuracy, and enabling intricate designs.
I recall a project for a medical device company. They had a component with deeply curved surfaces and angled holes – a nightmare for a 3-axis machine. We would have needed at least four, maybe five, separate setups. Each setup introduces a chance for slight misalignment, accumulating errors. By moving it to one of our 5-axis machines, we could complete almost all the features in a single setup. This not only slashed the machining time but also drastically improved the relational accuracy between features. For your robotic components, Alex, particularly for joints or complex housings, 5-axis can be a game-changer. It allows for more organic, stronger, and lighter designs because you’re not limited by traditional machining constraints.
Here’s when 5-axis truly shines:
- Complex Contours and Surfaces: Think turbine blades, impellers, medical implants, or aerospace structural components.
- Avoiding Multiple Setups: Each setup takes time and introduces potential for error. 5-axis minimizes this.
- Improved Tool Access: Can reach features that are impossible for 3-axis machines, like undercuts or angled holes, without specialized tooling or repositioning.
- Better Surface Finish: The tool can maintain an optimal cutting position relative to the workpiece surface, often resulting in smoother finishes.
- Shorter, More Rigid Tools: Because the head can tilt, shorter tools can be used, reducing vibration and improving accuracy.
The key benefit is machining complex shapes in fewer setups. This means less operator intervention, faster cycle times, and higher precision. While the machines and programming are more complex, for the right parts, the benefits are undeniable.How Does High-Speed Machining (HSM) Boost Efficiency and Finish?
Are you dealing with long cycle times for molds, dies, or thin-walled parts? Traditional machining might be too slow or induce too much stress. High-Speed Machining (HSM) could be your answer.
High-Speed Machining (HSM) uses high spindle speeds and feed rates with shallower cuts. This technique reduces cutting forces, minimizes heat buildup in the workpiece, improves surface finish, and is excellent for hard materials and thin-walled sections.
| I’ve seen HSM transform how we approach certain jobs, especially when dealing with hardened tool steels for molds or intricate aluminum parts with very thin walls. The philosophy is different from conventional machining. Instead of heavy cuts at slow speeds, HSM takes very fast, light passes. This seems counterintuitive for speed, but the overall material removal rate can be much higher. More importantly, because the chip is removed so quickly, less heat transfers into the workpiece. This is critical for maintaining dimensional stability, especially on parts prone to warping like thin aerospace structures or your precision robotic components, Alex. I remember machining a complex mold cavity; HSM allowed us to achieve a near-mirror finish directly from the machine, drastically reducing the need for time-consuming manual polishing. Consider HSM for: |
Application Area | Key HSM Benefit | Example |
|---|---|---|---|
| Mold & Die Making | Superior surface finish, machining of hardened steels. | Injection molds, stamping dies. | |
| Thin-Walled Parts | Reduced cutting forces prevent deformation. | Electronic enclosures, aerospace brackets. | |
| Complex 3D Surfaces | Smooth, accurate contouring. | Prototypes, medical devices. | |
| Hard Materials | Efficient machining of materials >45 HRC. | Hardened tool steels, some exotic alloys. | |
| Prototyping | Faster creation of intricate prototypes. | Quick-turnaround functional parts. |
The key is the combination of high spindle speeds (often 20,000 RPM or higher), fast feed rates, and specialized toolpaths (like trochoidal milling). This reduces tool wear and stress on the part, leading to better quality and often faster overall production, despite the lighter individual cuts.

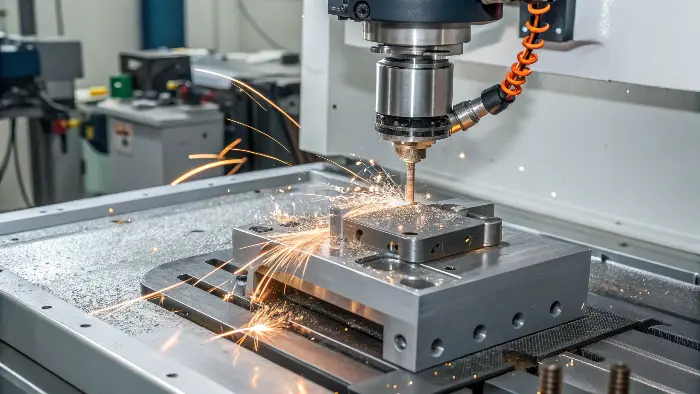

Why Consider Electrical Discharge Machining (EDM) for Intricate Features and Hard Materials?
Need to create sharp internal corners, tiny holes, or machine super-hard conductive materials that traditional tools can’t handle? Conventional cutting methods will fail or be extremely inefficient. Electrical Discharge Machining (EDM) offers a unique solution.
EDM uses controlled electrical sparks to erode material. It’s perfect for machining very hard conductive materials, creating intricate shapes, sharp internal corners, deep narrow slots, and fine details that are impossible with conventional cutting tools.
There are some jobs that simply can’t be done without EDM. I’ve relied on it many times for features like small, deep holes in hardened steel, or creating intricate patterns in extrusion dies. One specific case involved a component for a high-performance engine that required extremely sharp internal corners and was made from a material that was nearly impossible to machine conventionally. EDM was the only way to achieve the required geometry and precision. For your work, Alex, if you encounter designs with features like micro-holes for sensors, very narrow slots, or if you’re using materials like tungsten carbide or hardened tool steels, EDM is a process you need to know about. It’s a non-contact process, so there are no cutting forces, which is also beneficial for delicate parts.
There are two main types of EDM:
- Wire EDM: Uses a thin, continuously fed wire as the electrode to cut intricate profiles and contours, like punches and dies. It’s like a high-tech bandsaw for conductive materials.
- Advantages: Excellent for through-cuts, complex shapes, sharp corners, and taper cuts.
- Applications: Die making, creating extrusion profiles, precision gears, medical components.
- Sinker EDM (Die Sinking / Ram EDM): Uses a custom-shaped electrode (often graphite or copper) to "sink" or burn a cavity into the workpiece.
- Advantages: Creates blind cavities, complex 3D shapes, textures, and can machine very hard materials.
- Applications: Mold cavities, forging dies, intricate details that can’t be milled.
EDM is slower than conventional machining, but for the right applications, its capabilities are indispensable. It allows for designs that would otherwise be unmanufacturable.Is Swiss-Type Turning Ideal for Small, Complex, High-Volume Parts?
Are you designing small, intricate, and often long cylindrical parts needed in high volumes, like medical screws or electronic connectors? Traditional CNC lathes might struggle with precision over length or require multiple operations. Swiss-type turning excels here.
Swiss-type turning (or Swiss screw machining) is perfect for producing small, complex, long, and slender cylindrical parts in high volumes. It feeds the stock through a guide bushing, supporting the workpiece very close to the cutting tool, ensuring high precision and excellent surface finish.
When I think about high-volume production of small, precise parts – like pins, shafts, connectors, or medical implants – Swiss-type machines are often the unsung heroes. I’ve sourced millions of parts made this way. The key difference from a conventional lathe is that the headstock moves the bar stock axially through a guide bushing. The cutting tools act very close to this bushing, providing exceptional support to the workpiece. This minimizes deflection, even on very long and slender parts, allowing for incredibly tight tolerances (sometimes down to a few microns) and excellent surface finishes. Many Swiss machines also have sub-spindles and live tooling, meaning they can perform milling, drilling, and tapping operations, often completing a complex part in a single cycle. This "done-in-one" capability is huge for efficiency in high-volume scenarios. For your robotics work, Alex, if you have small actuator shafts, precision pins, or custom fasteners, Swiss-type turning is definitely worth considering, especially if you need thousands of them.
Here’s why Swiss-type turning stands out:Feature Benefit for Small, Complex Parts Typical Applications Guide Bushing Support High precision on long, slender parts; reduces vibration. Medical screws, dental implants, watch components. Sliding Headstock Material moves, tools are stationary (relatively). Small diameter pins, shafts, connectors. Multi-Axis Capability Can perform milling, drilling, off-center features. Complex micro-components for electronics, automotive. High Volume Efficiency Often unattended operation, fast cycle times. Thousands to millions of identical parts. "Done-in-One" Completes parts in a single setup, reducing secondary ops. Any small, complex part requiring multiple operations. While the setup for Swiss machines can be more involved than for conventional lathes, for high-volume production of suitable parts, their speed, precision, and ability to produce complex geometries in one go make them incredibly cost-effective.
Conclusion
Choosing the right advanced CNC process is crucial. Understanding 5-axis, HSM, EDM, and Swiss-type turning helps you optimize designs for quality, efficiency, and cost-effectiveness in manufacturing.
